ADR Dangerous Goods Warning Signs Numbering

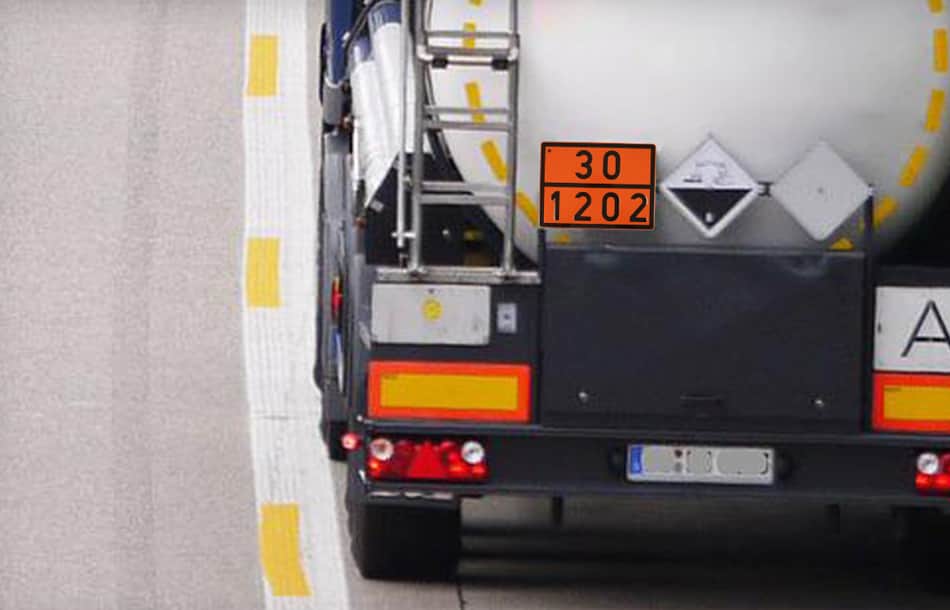

ADR Plate Example

The upper number is used to identify the danger posed by the goods being transported. It is called the hazard identification number (Kemler number) consists of 2 or 3 digits, if necessary preceded by the letter "X".

The lower number is the UN number (4 digits), which indicates the type of goods being transported.

Hazard Labelling

The hazard identification number consists of two or three digits for substances of classes 2 to 9. The digits generally indicate the following hazards:

2 Escape of gas by pressure or by chemical reaction
3 Flammability of liquid substances (vapours) and gases or self-heating liquid substance
4 Flammability of solid substances or self-heating solid substance
5 Oxidising (fire-promoting) effect
6 Toxicity or infectiousness
7 Radioactivity
8 Corrosivity
9 Miscellaneous dangerous substances and articles, risk of spontaneous violent reaction


The doubling of a digit indicates the increase of the corresponding hazard. If the hazard of a substance can be sufficiently indicated by a single digit, a zero is added to this digit. There are also other combinations of digits with special meaning. If the hazard identification number is preceded by the letter "X", this means that the substance reacts dangerously with water. For such substances, water may only be used with the agreement of experts.

For Class 1 Explosives, a classification code is additionally used as a number to identify the hazard. The classification code consists of the number of the subclass and the letter of the compatibility group.



The numbers have the following meaning:

20 Asphyxiant gas or gas with no subsidiary hazard
22 Refrigerated liquefied gas, asphyxiant
23 Flammable gas
223 Refrigerated liquefied gas, flammable
225 Refrigerated liquefied gas, oxidizing (fire-intensifying)
238 Gas, flammable corrosive
239 Flammable gas, which can spontaneously lead to violent reaction
25 Oxidizing (fire-intensifying) gas
26 Toxic gas
263 Toxic gas, flammable
265 Toxic gas, oxidizing (fire-intensifying)
268 Toxic gas, corrosive
28 Gas, corrosive
285 Aerosols, corrosive, oxidizing
30 30 Flammable liquid (flash-point between 23 °C and 60 °C, inclusive) or flammable liquid or solid in the molten state with a flash-point above 60 °C, heated to a temperature equal to or above its flash-point,
or self-heating liquid
323 Flammable liquid which reacts with water, emitting flammable gases
X323 Flammable liquid which reacts dangerously with water, emitting flammable gases (water not to be used except by approval of experts)
33 Highly flammable liquid (flash-point below 23 °C)
333 Pyrophoric liquid
X333 Pyrophoric liquid which reacts dangerously with water (water not to be used except by approval of experts)
336 Highly flammable liquid, toxic
338 Highly flammable liquid, corrosive
X338 Highly flammable liquid, corrosive, which reacts dangerously with water (water not to be used except by approval of experts)
339 Highly flammable liquid which can spontaneously lead to violent reaction
36 Flammable liquid (flash-point between 23 °C and 60 °C, inclusive), slightly toxic, or self-heating liquid, toxic
362 Flammable liquid, toxic, which reacts with water, emitting flammable gases
X362 Flammable liquid toxic, which reacts dangerously with water, emitting flammable gases (water not to be used except by approval of experts)
368 Flammable liquid, toxic, corrosive
38 Flammable liquid (flash-point between 23 °C and 60 °C, inclusive), slightly corrosive or self-heating liquid, corrosive
382 Flammable liquid, corrosive, which reacts with water, emitting flammable gases
X382 Flammable liquid, corrosive, which reacts dangerously with water, emitting flammable gases (water not to be used except by approval of experts)
39 Flammable liquid, which can spontaneously lead to violent reaction
40 Flammable solid, or self-reactive substance, or self-heating substance, or polymerizing substance
423 Solid which reacts with water, emitting flammable gases, or flammable solid which reacts with water, emitting flammable gases, or self-heating solid which reacts with water, emitting flammable gases
X432 Solid which reacts dangerously with water, emitting flammable gases, or
flammable solid wich reacts dangerously with water, emitting flammable gases or
self-heating solid wich reacts dangerously with water, emitting flammable gases (water not to be used except by approval of experts)
43 Spontaneously flammable (pyrophoric) solid
X432 Spontaneously flammable (pyrophoric) solid which reacts dangerously with water, emitting flammable gases (water not to be used except by approval of experts)
44 Flammable solid, in the molten state at an elevated temperature
446 Flammable solid, toxic, in the molten state, at an elevated temperature
46 Flammable or self-heating solid, toxic
462 Toxic solid which reacts with water, emitting flammable gases
X462 Solid which reacts dangerously with water, emitting toxic gases (water not to be used except by approval of experts)
48 Flammable or self-heating solid, corrosive
482 Corrosive solid which reacts with water, emitting flammable gases
X482 Solid which reacts dangerously with water, emitting corrosive gases (water not to be used except by approval of experts)
50 Oxidizing (fire-intensifying) substance
539 Flammable organic peroxide
55 Strongly oxidizing (fire-intensifying) substance
556 Strongly oxidizing (fire-intensifying) substance, toxic
558 Strongly oxidizing (fire-intensifying) substance, corrosive
559 Strongly oxidizing (fire-intensifying) substance, which can spontaneously lead to violent reaction
56 Oxidizing substance (fire-intensifying), toxic
568 Oxidizing substance (fire-intensifying), toxic, corrosive
58 Oxidizing substance (fire-intensifying), corrosive
59 Oxidizing substance (fire-intensifying) which can spontaneously lead to violent reaction
60 Toxic or slightly toxic substance
606 Infectious substance
623 Toxic liquid, which reacts with water, emitting flammable gases
63 Toxic substance, flammable (flash-point between 23 °C and 60 °C, inclusive)
638 Toxic substance, flammable (flash-point between 23 °C and 60 °C, inclusive), corrosive
639 Toxic substance, flammable (flash-point not above 60 °C) which can spontaneously lead to violent reaction
64 Toxic solid, flammable or self-heating
642 Toxic solid, which reacts with water, emitting flammable gases
65 Toxic substance, oxidizing (fire-intensifying)
66 Highly toxic substance
663 Highly toxic substance, flammable (flash-point not above 60 °C)
664 Highly toxic solid, flammable or self-heating
665 Highly toxic substance, oxidizing (fire-intensifying)
668 Highly toxic substance, corrosive
X668 Highly toxic substance, corrosive, which reacts dangerously with water (water not to be used except by approval of experts)
669 Highly toxic substance which can spontaneously lead to violent reaction
68 Toxic substance, corrosive
687 Toxic substance, corrosive, radioactive
69 Toxic or slightly toxic substance, which can spontaneously lead to violent reaction
70 Radioactive material
768 Radioactive material, toxic, corrosive
78 Radioactive material, toxic
80 Corrosive or slightly corrosive substance
X80 Corrosive or slightly corrosive substance, which reacts dangerously with water (water not to be used except by approval of experts)
823 Corrosive liquid which reacts with water, emitting flammable gases
83 Corrosive or slightly corrosive substance, flammable (flash-point between 23 °C and 60 °C, inclusive)
X83 Corrosive or slightly corrosive substance, flammable, (flash-point between 23 °C and 60 °C, inclusive), which reacts dangerously with water (water not to be used except by approval of experts)
836 Corrosive or slightly corrosive substance, flammable (flash-point between 23ºC and 60ºC, inclusive) and toxic
839 Corrosive or slightly corrosive substance, flammable (flash-point between 23 °C and 60 °C inclusive) which can spontaneously lead to violent reaction
X839 Corrosive or slightly corrosive substance, flammable (flash-point between 23 °C and 60 °C inclusive), which can spontaneously lead to violent reaction and which reacts dangerously with water (water not to be used except by approval of experts)
84 Corrosive solid, flammable or self-heating
842 Corrosive solid which reacts with water, emitting flammable gases
85 Corrosive or slightly corrosive substance, oxidizing (fire-intensifying)
856 Corrosive or slightly corrosive substance, oxidizing (fire-intensifying) and toxic
86 Corrosive or slightly corrosive substance, toxic
88 Highly corrosive substance
X88 Highly corrosive substance, which reacts dangerously with water (water not to be used except by approval of experts)
883 Highly corrosive substance, flammable (flash-point between 23 °C and 60 °C inclusive)
884 Highly corrosive solid, flammable or self-heating
885 Highly corrosive substance, oxidizing (fire-intensifying)
886 Highly corrosive substance, toxic
X886 Highly corrosive substance, toxic, which reacts dangerously with water (water not to be used except by approval of experts)
89 Corrosive or slightly corrosive substance, which can spontaneously lead to violent reaction
90 Environmentally hazardous substance; miscellaneous dangerous substances
99 Miscellaneous dangerous substance carried at an elevated temperature



Labelling of the goods to be transported

You can find the complete list of UN numbers here:

List of UN numbers English version.

List of UN numbers German version.
