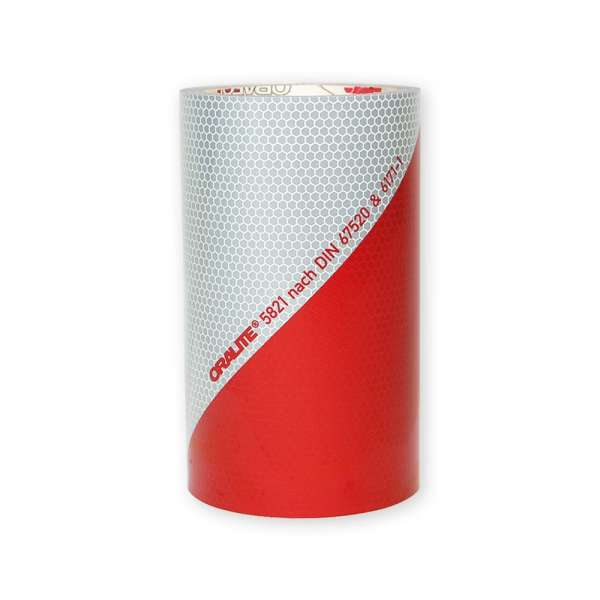

Orafol 5821 Safety Marking for Escort Vehicles

Orafol ORALITE 5821 High Intensity Fleet Marking Grade is a reflective film for warning markings for escort vehicles (BF3, BF3PLUS and BF4), with BASt approval and in accordance with DIN 67520, DIN 6171.

Direction: pointing left or right
Widths: 175 mm or 380 mm
Hatch width: 180 mm (angle 45 °)
Colour: red/white
Reflectivity class: RA2/B
Accompanying vehicles: BF3, BF3PLUS and BF4

The film was specially developed for the production of vehicle warning markings and can be removed from painted surfaces under the influence of heat.

The original roll length is max. 50 m. If you order more than 50 metres, you will receive several rolls.

Properties of Orafol ORALITE reflective film series 5821

- flexible and weather-resistant

- self-adhesive

- excellent corrosion and solvent resistance

- durability 5 years

- film thickness: 0.21 mm

- removable with the application of heat

Application of Orafol ORALITE reflective film 5821

The surface to be covered must be free of dust, grease or other contaminants that could impair the adhesive strength of the material.
New coatings must be fully cured. Application tests must be carried out with the intended paints to determine compatibility.
The self-adhesive reflective material may only be applied dry!
Furthermore, the processing instructions issued by ORAFOL must be observed.
