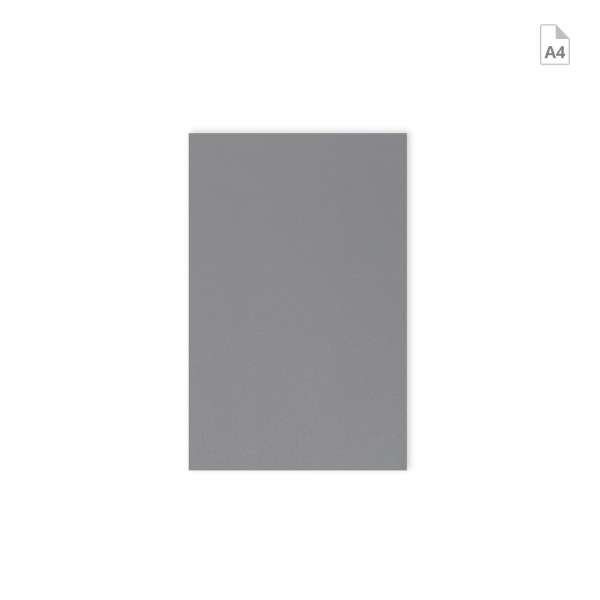

Orafol ORALITE Superlens 3000 Sheets

Sheets of the glass bead based reflective film ORALITE Superlens 3000 Photoelectric Sheeting from Orafol. The film provides a uniform, very high reflective value and was specially developed for photoelectric sensor applications and optoelectronic scanning in indoor areas.

Dimensions: 297 x 420 mm (DIN A3) or 297 x 210 mm (DIN A4)
Reflectivity: 400 cd/lux/m²
Colour: silver
Thickness: 0,024 mm

Features of ORALITE 3000 Super Lens Photoelectric Sheeting:

• glass bead-based structure for uniform reflection
• Very highly reflective
• homogeneous reflective characteristics across the surface
• pressure-sensitive adhesive and removable protective film
• for indoor applications, e.g. for photoelectric sorting and classification systems in warehouses or conveyor systems

Application Instructions:
Optimum application temperature is between 15 °C and 38 °C. Before application, surface must be cleaned from grease and dirt. Clean the surface with clean cloth and isopropyl alcohol. Exposure to very high temperatures (> 95 °C) over an extended period may permanently reduce retroreflective performance.
