Orafol ORALITE Sheets 5710

• Size: 297 x 210 mm (DIN A4), 420 x 297 mm (DIN A3)
• Reflectivity class: RA1/A
• Colours: white (010), yellow (020), red (030), orange (035), blue (050), green (060), black (Oralite 5700)

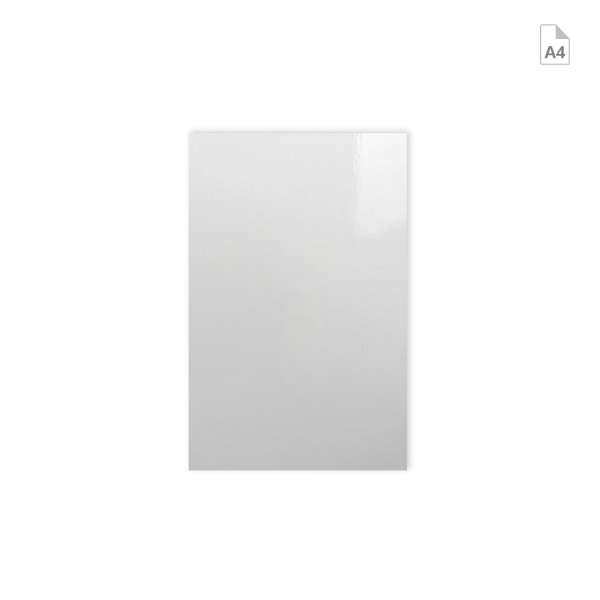

The reflective sheet (DIN A3 or DIN A4) is made of Orafol^® ORALITE^® 5710 Engineer Grade Premium which was originally designed for traffic, warning and information signs and is apt for long-term outdoor use. The retroreflective sheeting with a smooth alkyd resin surface is characterised by its scratch and impact resistance.

Certificates (do not apply for black sheeting):
• CE compliance pursuant to DIN EN 12899-1
• approval by BASt according to EN 12899-1, DIN 67520 and DIN 6171

Features of Orafol^® ORALITE^® 5710 Engineer Grade Premium:
• self-adhesive for permanent application
• thickness 0.13 mm
• plottable, flexible, printable
• good reflective properties (glass bead structure)
• no edge sealing necessary
• excellent corrosion and solvent resistance, weather resistant
• service life of 7 years
• CE compliant (black excluded)

Fields of Application for Orafol^® ORALITE^® 5710 Engineer Grade Premium:
• traffic signs and traffic control devices
• information boards
• reflective advertising
• numbers and letters
• safety markings
• bollards and barriers
• garage and car park markings
• markings for cycling paths

Application of Orafol^® ORALITE^® 5710
The self-adhesive reflective material is for dry application only!
Application on flat or slightly curves surfaces.
The surface must be free of dust, grease or other impurities that could impair the adhesive strength of the material.
New coatings must be dried or fully cured for at least three weeks.
Carry out application tests to check compatibility with paint.
The low tear strength of the material may make it difficult to remove the reflective sheeting.

For more information, please refer to the data sheets.
