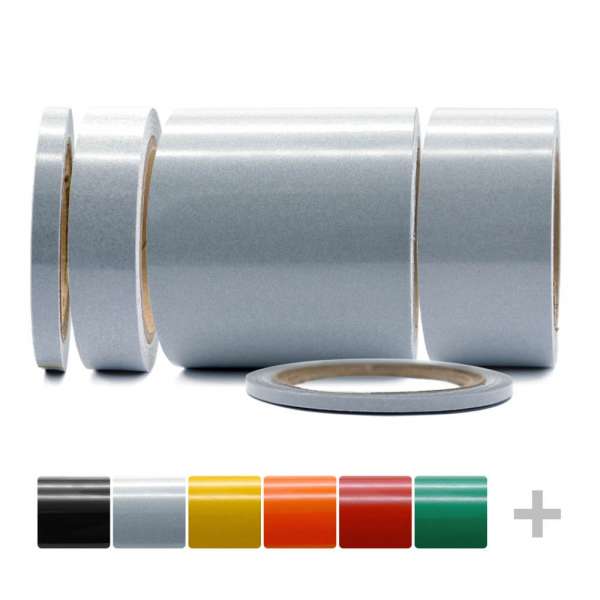

Orafol ORALITE Reflective Tape 5710

The reflective tapes from Orafol ORALITE 5710 Engineer Grade Premium are very well suited for bonding on curved and round surfaces.

Widths: 5 mm, 10 mm, 25 mm, 50 mm, 100 mm
Lengths: 5 m or 10 m
Reflectivity class: RA1/A
Colours: white, yellow, red, orange, blue, green, black

Features of ORALITE 5710 reflective tapes

• Durability up to 7 years
• Film thickness: 0.13 mm (flexible, well suited for round or curved surfaces)
• Bonding should not be carried out at air and material temperatures below 15° C. The optimum bonding temperature is 21° C.
• Resistant to corrosion and solvents
• Weatherproof and hard-wearing (scratch and impact resistant)
• No edge sealing required
• BASt approval, fulfils EN 12899, DIN 67520, DIN 6171, CE-certified

Possible applications of the reflective tape Orafol ORALITE 5710 Engineer Grade Premium
The reflective adhesive tape is suitable for various applications, such as
- Reflective target markers for sensor systems, e.g. light barriers (infrared/red light), measurement technology and CNC controls
- Markings in outdoor areas, e.g. gate entrances, barriers, bollards, posts
- Bonding on bicycles, trailers, pushchairs
- walking frames, walking sticks

Further information on Orafol ORALITE 5710 reflective film can be found in the data sheets.

Important notes:
Please note that there may be a deviation in the reflective tape width of +/- 1 mm due to the production process.

A watermark can be seen at regular intervals on the film, which proves the authenticity of the stamp film. Please note that the reflective tape may be cut in such a way that there is no watermark on the film strip in front of you.

The Orafol logo is only printed at larger intervals inside the large roll. It is therefore possible that individual reflective tapes do not have a logo. However, you can recognise the authenticity of the film by its surface structure as shown in the photo.
