Prices incl. VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: 03110166-010-05-111
The 3M 4080 Diamond Grade was developed as a reflective film for traffic signs and also impresses as a reflective tape in other diverse areas of application.
Widths: 10 mm, 25 mm, 50 mm, 100 mm
Lengths: 5 m or 10 m
Reflectivity class: RA3/C
3M colours: fluor-lime (fluorescent yellow-green 4083), fluor-yellow (fluorescent yellow 4081), fluor-orange (fluorescent orange 4084)
Please note that, for production reasons, 5 mm and 10 mm wide tapes are only available as 10 m rolls.
Features of reflective tapes 3M 4080 fluor
- Film thickness: 0.22 mm, rigid and not very flexible
- Bonding should be carried out at a minimum of +18 °C (material and ambient temperature), increased initial adhesion of the adhesive above 25 °C
- Weather-resistant, hard-wearing and durable
- permanently self-adhesive, suitable for flat surfaces made of e.g. aluminium, metal, plywood
- Edge sealing is recommended
Possible applications of the reflective tape 3M 4090 Diamond Grade
The reflective tape is suitable for various applications:
- Reflective target markings for sensor systems, e.g. light barriers (infrared, red light reflex light barriers), measurement technology and CNC controls
- Markings in outdoor areas, e.g. gate entrances, barriers, bollards, posts
Further information on 3M 4080 fluor reflective film can be found in the data sheets.
Important notes:
Please note that there may be a deviation in the reflective tape width of +/- 1 mm due to the production process.

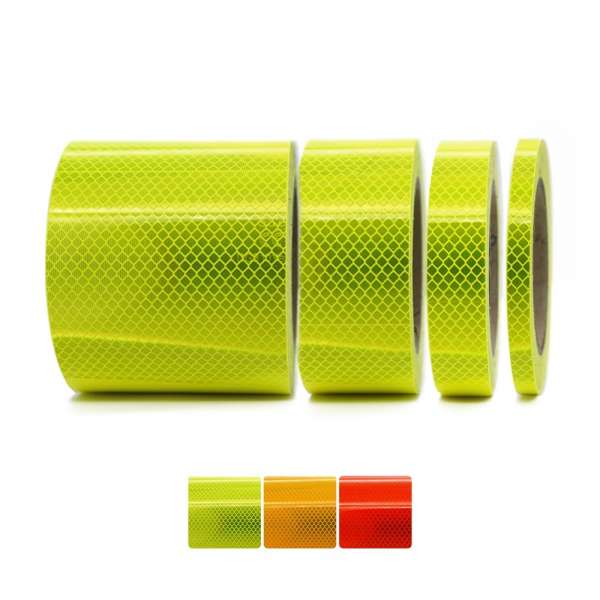

The 3M logo is only printed at larger intervals inside the large roll. It is therefore possible that individual reflective tapes do not have a logo. However, you can recognise the authenticity of the film by its surface structure as shown in the photo.
Adhesive: | Permanent |
Manufacturer: | 3M |
Colour: | fluorescent lime, fluorescent orange, fluorescent yellow |
Reflectivity class: | RA3/C |
Film Thickness: | 0.22mm |
